package sample

Building webservices with Axis

For below…the examples are from axis2-1.3 Need to run the axis server in axis21.3 .---/bin/runserver.bat

Then go to localhost:8080

Working on axis2.samples… here is pojo client run

C:\axis\samples\pojo>ant rpc.client

Buildfile: build.xml

clean:

[delete] Deleting directory C:\axis\samples\pojo\build

prepare:

[mkdir] Created dir: C:\axis\samples\pojo\build

[mkdir] Created dir: C:\axis\samples\pojo\build\classes

[mkdir] Created dir: C:\axis\samples\pojo\build\lib

[mkdir] Created dir: C:\axis\samples\pojo\build\classes\META-INF

rpc.client:

rpc.client.compile:

[javac] Compiling 2 source files to C:\axis\samples\pojo\build\classes

rpc.client.jar:

[jar] Building jar: C:\axis\samples\pojo\build\lib\rpc-client.jar

rpc.client.run:

[java] log4j:WARN No appenders could be found for logger (org.apache.axis2.

util.Loader).

[java] log4j:WARN Please initialize the log4j system properly.

[java] Name :Abby Cadabby

[java] Street :Sesame Street

[java] City :Sesame City

[java] State :Sesame State

[java] Postal Code :11111

BUILD SUCCESSFUL

Total time: 5 seconds

C:\axis\samples\pojo>

With a little monkeying I added code to the client to insert more names and search for a different value:

[java] Adding....Name :Abby Cadabby

[java] Adding....Name :Billy Joe Bob Ben

[java] Name :Billy Joe Bob Ben

[java] Street :Maple Street

[java] City :Gotham City

[java] State :State of Mind

[java] Postal Code :22222

It would be easy to build a frame interface for this.

Here’s the client which creates a few entries:

package sample.addressbook.rpcclient;

import javax.xml.namespace.QName;

import org.apache.axis2.AxisFault;

import org.apache.axis2.addressing.EndpointReference;

import org.apache.axis2.client.Options;

import org.apache.axis2.rpc.client.RPCServiceClient;

import sample.addressbook.entry.Entry;

public class AddressBookRPCClient {

public static void main(String[] args1) throws AxisFault {

RPCServiceClient serviceClient = new RPCServiceClient();

Options options = serviceClient.getOptions();

EndpointReference targetEPR = new EndpointReference(

"http://127.0.0.1:8080/axis2/services/AddressBookService");

options.setTo(targetEPR);

// /////////////////////////////////////////////////////////////////////

* Creates an Entry and stores it in the AddressBook.

// QName of the target method

QName opAddEntry = new QName("http://service.addressbook.sample", "addEntry");

* Constructing a new Entry

Entry entry1 = new Entry();

entry1.setName("Abby Cadabby");

entry1.setStreet("Sesame Street");

entry1.setCity("Sesame City");

entry1.setState("Sesame State");

entry1.setPostalCode("11111");

Entry entry2 = new Entry();

System.out.println("Adding....Name :" + entry1.getName());

// Constructing the arguments array for the method invocation

Object[] opAddEntryArgs = new Object[] { entry1 };

// Invoking the method

serviceClient.invokeRobust(opAddEntry, opAddEntryArgs);

entry2.setName("Billy Joe Bob Ben");

entry2.setStreet("Maple Street");

entry2.setCity("Gotham City");

entry2.setState("State of Mind");

entry2.setPostalCode("22222");

System.out.println("Adding....Name :" + entry2.getName());

opAddEntryArgs = new Object[] { entry2 };

// Invoking the method

serviceClient.invokeRobust(opAddEntry, opAddEntryArgs);

////////////////////////////////////////////////////////////////////////

///////////////////////////////////////////////////////////////////////

* Fetching an Entry from the Address book

// QName of the method to invoke

QName opFindEntry = new QName("http://service.addressbook.sample", "findEntry");

String name = "Billy Joe Bob Ben";

Object[] opFindEntryArgs = new Object[] { name};

Class[] returnTypes = new Class[] { Entry.class };

Object[] response = serviceClient.invokeBlocking(opFindEntry,

opFindEntryArgs, returnTypes);

Entry result = (Entry) response[0];

if (result == null) {

System.out.println("No entry found for " + name);

return;

}

System.out.println("Name :" + result.getName());

System.out.println("Street :" + result.getStreet());

System.out.println("City :" + result.getCity());

System.out.println("State :" + result.getState());

System.out.println("Postal Code :" + result.getPostalCode());

///////////////////////////////////////////////////////////////////////

}

I don’t show the Entry class which has name, etc fields plus getters and setters…

Here is the service class

package sample.addressbook.service;

import java.util.HashMap;

import sample.addressbook.entry.Entry;

public class AddressBookService {

private HashMap entries = new HashMap();

/**

* Add an Entry to the Address Book

* @param entry

public void addEntry(Entry entry) {

this.entries.put(entry.getName(), entry);

}

/**

* Search an address of a person

* @param name the name of the person whose address needs to be found

* @return return the address entry of the person.

public Entry findEntry(String name) {

return (Entry) this.entries.get(name);

}

The META-INF dir contains the service.xml which axis uses for creating the service:

POJO: AddressBook Service

</description>

<messageReceiver mep="http://www.w3.org/2004/08/wsdl/in-only"

class="org.apache.axis2.rpc.receivers.RPCInOnlyMessageReceiver"/>

<messageReceiver mep="http://www.w3.org/2004/08/wsdl/in-out"

class="org.apache.axis2.rpc.receivers.RPCMessageReceiver"/>

</messageReceivers>

<parameter name="ServiceClass">sample.addressbook.service.AddressBookService</parameter>

</service>

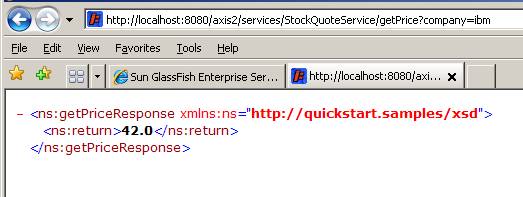

I built the jar file for stockquote example by changing the ant buildfile:

</jar>

Running ant in yahoo search automatically runs client:

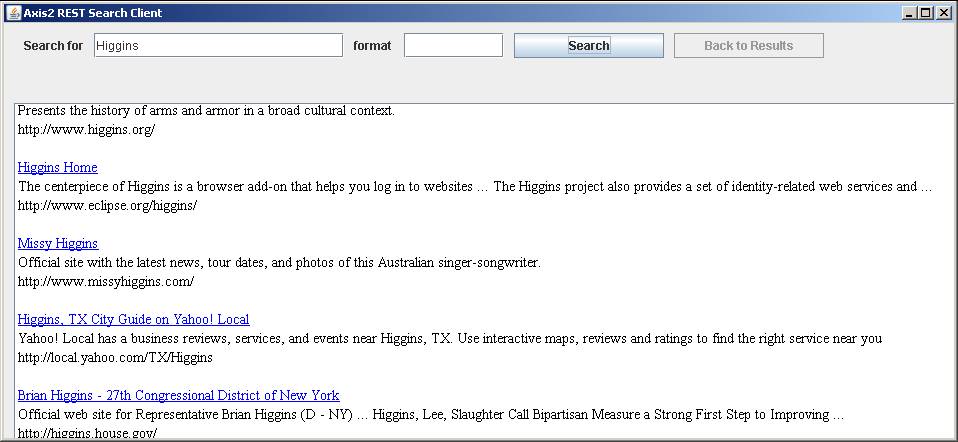

And here is Axis2 Rest Search Client…. Run ant in the root and the service and client run.

Did not get weatherspringservice to work

Soap with attachments sends a file…

C:\axis2-1.3\samples\soapwithattachments>ant generate.service

Buildfile: build.xml

compile:

[mkdir] Created dir: C:\axis2-1.3\samples\soapwithattachments\build\classes

[javac] Compiling 2 source files to C:\axis2-1.3\samples\soapwithattachments

\build\classes

generate.service:

[jar] Building jar: C:\axis2-1.3\samples\soapwithattachments\build\sample-

swa.aar

[copy] Copying 1 file to C:\axis2-1.3\repository\services

BUILD SUCCESSFUL

Total time: 2 seconds

C:\axis2-1.3\samples\soapwithattachments>ant run.client -Dfile tmp.txt -Ddest C:

\tmp.txt

Buildfile: build.xml

compile:

check-parameters:

print-usage:

run.client:

[jar] Building jar: C:\axis2-1.3\samples\soapwithattachments\build\swaSamp

leClient.jar

[java] log4j:WARN No appenders could be found for logger (org.apache.axis2.

deployment.FileSystemConfigurator).

[java] log4j:WARN Please initialize the log4j system properly.

[java] File saved succesfully.

BUILD SUCCESSFUL

Total time: 2 seconds

C:\axis2-1.3\samples\soapwithattachments>

Weather service in pojoguide…

This is similar to pojo above… it does not provide a connection to any service but just allows get/set Weather object

This and the addressbook provide models for converting pojos into webservices.

Here’s weather service output

[java] Temperature : 39.3

[java] Forecast : Cloudy with showers

[java] Rain : true

[java] How much rain (in inches) : 4.5

Here is the weather class:

package sample.pojo.data;

public class Weather{

float temperature;

String forecast;

boolean rain;

float howMuchRain;

public void setTemperature(float temp){

temperature = temp;

}

public float getTemperature(){

return temperature;

}

public void setForecast(String fore){

forecast = fore;

}

public String getForecast(){

return forecast;

}

public void setRain(boolean r){

rain = r;

}

public boolean getRain(){

return rain;

}

public void setHowMuchRain(float howMuch){

howMuchRain = howMuch;

}

public float getHowMuchRain(){

return howMuchRain;

}

And the service couldn’t be simpler:

package sample.pojo.service;

import sample.pojo.data.Weather;

public class WeatherService{

Weather weather;

public void setWeather(Weather weather){

this.weather = weather;

}

public Weather getWeather(){

return this.weather;

}

And the client:

package sample.pojo.rpcclient;

import javax.xml.namespace.QName;

import org.apache.axis2.AxisFault;

import org.apache.axis2.addressing.EndpointReference;

import org.apache.axis2.client.Options;

import org.apache.axis2.rpc.client.RPCServiceClient;

import sample.pojo.data.Weather;

public class WeatherRPCClient {

public static void main(String[] args1) throws AxisFault {

RPCServiceClient serviceClient = new RPCServiceClient();

Options options = serviceClient.getOptions();

EndpointReference targetEPR = new EndpointReference("http://localhost:8080/axis2/services/WeatherService");

options.setTo(targetEPR);

// Setting the weather

QName opSetWeather = new QName("http://service.pojo.sample", "setWeather");

Weather w = new Weather();

w.setTemperature((float)39.3);

w.setForecast("Cloudy with showers");

w.setRain(true);

w.setHowMuchRain((float)4.5);

Object[] opSetWeatherArgs = new Object[] { w };

serviceClient.invokeRobust(opSetWeather, opSetWeatherArgs);

// Getting the weather

QName opGetWeather = new QName("http://service.pojo.sample", "getWeather");

Object[] opGetWeatherArgs = new Object[] { };//

Class[] returnTypes = new Class[] { Weather.class };

Object[] response = serviceClient.invokeBlocking(opGetWeather,

opGetWeatherArgs, returnTypes);

Weather result = (Weather) response[0];

if (result == null) {

System.out.println("Weather didn't initialize!");

return;

}

// Displaying the result

System.out.println("Temperature : " +

result.getTemperature());

System.out.println("Forecast : " +

result.getForecast());

System.out.println("Rain : " +

result.getRain());

System.out.println("How much rain (in inches) : " +

result.getHowMuchRain());

}

I took the pojo example and built a statespojo

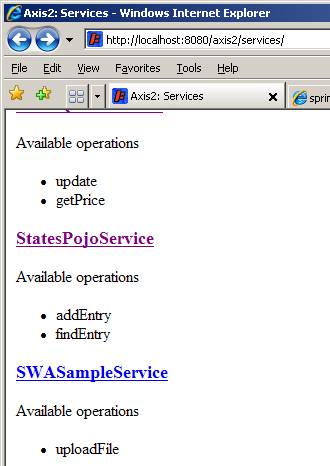

Here is the axis service running:

… here is the client running:

[java] Adding....Name :New York

[java] Adding....Name :New Jersey

[java] Adding....Name :Louisiana

[java] Adding....Name :North Dakota

[java] Adding....Name :Kansas

[java] Adding....Name :Oklahoma

[java] Adding....Name :California

Lookup part:

[java] Name :Oklahoma

[java] Capitol :Oklahoma City

BUILD SUCCESSFUL

Total time: 3 seconds

C:\axis2-1.3\samples\statespojo>

BUILD SUCCESSFUL

Total time: 4 seconds

C:\axis2-1.3\samples\statespojo>

Note… in next iteration I moved the adding states to hashmap into the ws.

This example webservice/client app was modeled after the pojo examples that came with axis2 distribution.

package sample.statespojo.rpcclient;

import javax.xml.namespace.QName;

import org.apache.axis2.AxisFault;

import org.apache.axis2.addressing.EndpointReference;

import org.apache.axis2.client.Options;

import org.apache.axis2.rpc.client.RPCServiceClient;

import sample.statespojo.entry.Entry;

public class StatesPojoRPCClient {

public static void main(String[] args1) throws AxisFault {

RPCServiceClient serviceClient = new RPCServiceClient();

Options options = serviceClient.getOptions();

EndpointReference targetEPR = new EndpointReference(

"http://127.0.0.1:8080/axis2/services/StatesPojoService");

options.setTo(targetEPR);

// /////////////////////////////////////////////////////////////////////

* Creates an Entry and stores it in the states

// QName of the target method

QName opAddEntry = new QName("http://service.statespojo.sample", "addEntry");

* Constructing a new Entry

Entry entry = new Entry();

entry.setStateName("Hawaii");

entry.setStateCapitol("Honolulu");

Object[] opAddEntryArgs ;

System.out.println("Adding....Name :" + entry.getStateName());

// Constructing the arguments array for the method invocation

opAddEntryArgs = new Object[] { entry };

// Invoking the method

serviceClient.invokeRobust(opAddEntry, opAddEntryArgs);

////////////////////////////////////////////////////////////////////////

///////////////////////////////////////////////////////////////////////

* Fetching an Entry from the Address book

// QName of the method to invoke

QName opFindEntry = new QName("http://service.statespojo.sample", "findEntry");

String name = "Oklahoma";

Object[] opFindEntryArgs = new Object[] { name};

Class[] returnTypes = new Class[] { Entry.class };

Object[] response = serviceClient.invokeBlocking(opFindEntry,

opFindEntryArgs, returnTypes);

Entry result = (Entry) response[0];

if (result == null) {

System.out.println("No entry found for " + name);

return;

}

System.out.println("Name :" + result.getStateName());

System.out.println("Capitol :" + result.getStateCapitol());

///////////////////////////////////////////////////////////////////////

}

package sample.statespojo.entry;

public class Entry {

private String statename = null;

private String statecapitol = null;

public String getStateName() {

return statename;

}

public void setStateName(String sn) {

this.statename = sn;

}

public String getStateCapitol() {

return statecapitol;

}

public void setStateCapitol(String sc) {

this.statecapitol = sc;

}

package sample.statespojo.service;

import java.util.HashMap;

import sample.statespojo.entry.Entry;

public class StatesPojoService {

private HashMap entries;

public StatesPojoService(){

entries= new HashMap(50);

Entry entry=new Entry();

String states[]={"New York", "New Jersey","Louisiana", "North Dakota","Kansas","Oklahoma","California","Pennsylvania"};

String caps[]={"Albany","Trenton","Baton Rouge","Pierre","Topeka","Oklahoma City","Sacremento","Harrisburg"};

for(int k=0;k<states.length;k++){

entry.setStateName(states[k]);

entry.setStateCapitol(caps[k]);

this.entries.put(states[k],entry);

}

/**

* Add an Entry to the statespojoBook

* @param entry

public Entry addEntry(Entry entry) {

this.entries.put(entry.getStateName(), entry);return entry;

}

public Entry addEntry(String sname,String capname) {

Entry entry=new Entry();

entry.setStateName(sname);

entry.setStateCapitol(capname);

this.entries.put(entry.getStateName(), entry);

return entry;

}

public Entry findEntry(String name) {

return (Entry) this.entries.get(name);

}

Ant build script in root

</fileset>

</path>

</fileset>

</fileset>

</path>

</target>

</target>

</javac>

</target>

</antcall>

</target>

</javac>

</target>

</target>

</java>

</target>

<and>

</and>

</condition>

</target>

<echo message="ant adb.client -Dwsdl='http://<yourhost>:<yourport>/axis2/services/StatesPojoService?wsdl'" />

</target>

</antcall>

</target>

</java>

</target>

</javac>

</target>

</target>

</java>

</target>

</project>

My flex webservice consumer for StatesPojo:

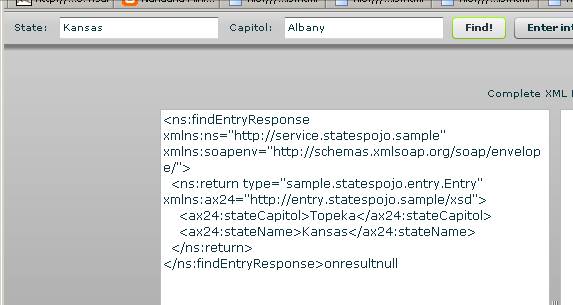

Looking for capitol of Kansas:

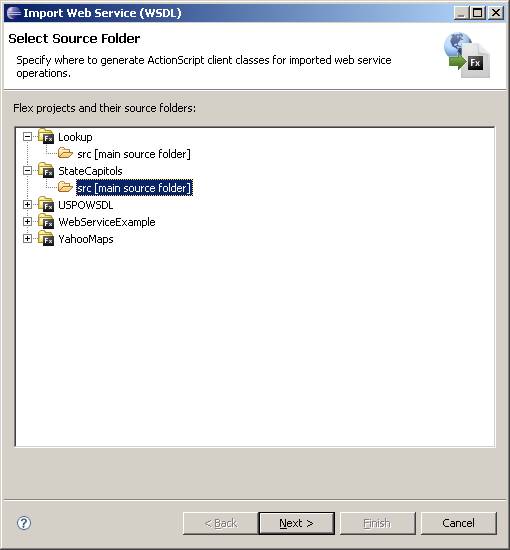

In Flexbuilder Select dataà import webservicesàselect src folder and click next

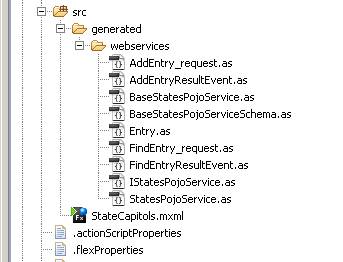

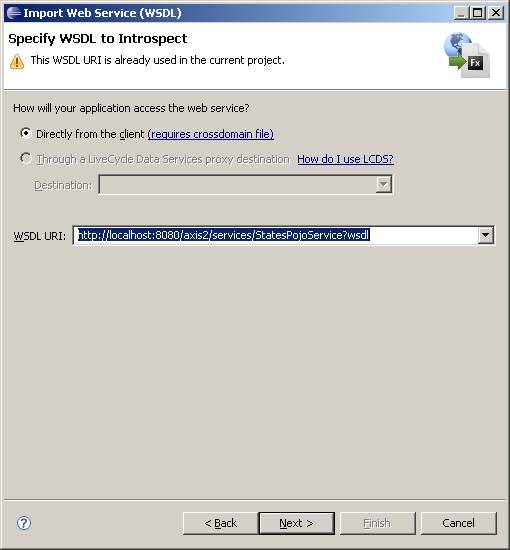

àenter URI for your axis2 webservice and select directly from client. XXX.as (ActionScript) classes for mapping to the service are generated. Here’s a shot of the as classes generated:

In this example, there are only two functions, the “addEntry” and “findEntry” and one class (Entry) to be mapped. Notice that Events have been generated for callback after the results are returned from the webservice.

A note… if you change your service class you must shut down and restart the server for the changes to take effect.

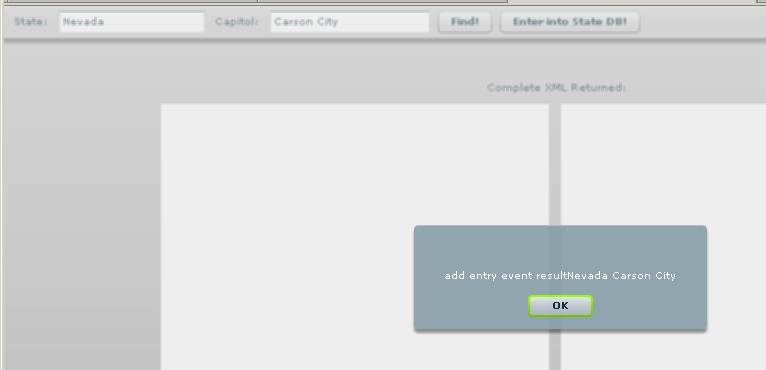

Alert showing Carson City, Nevada being added:

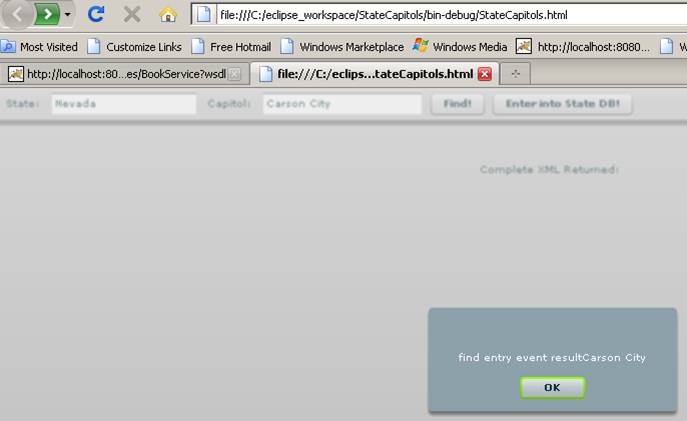

Then alert showing result of looking for Nevada’s capitol:

Notice then how I import the service class (and other generated classes). The service class is used to call the functions. The Entry. java maps to an Entry.as class. Event listeners for results are generated and these are added to the service class. The service class is used to call webservices functions when the buttons are pressed. The listeners route to functions to handle the callback.

<?xml version="1.0" encoding="utf-8"?>

<mx:Application

xmlns:mx="http://www.adobe.com/2006/mxml"

backgroundColor="#cccccc"

layout="vertical"

paddingBottom="10"

paddingLeft="10"

paddingRight="10"

paddingTop="10" creationComplete="init()">

<mx:Style>

Application {

backgroundColor: #cccccc;

backgroundGradientColors: #cccccc, #999999;

themeColor: #99ff00;

}

</mx:Style>

<mx:Script>

<![CDATA[

import mx.controls.Alert;

import mx.collections.ArrayCollection;

import mx.rpc.events.FaultEvent;

import mx.rpc.AsyncToken;

import mx.rpc.events.ResultEvent;

import mx.rpc.Responder;

import generated.webservices.StatesPojoService;

import generated.webservices.*;

private var sps:StatesPojoService;

[Bindable]

private var searching : Boolean = false;

[Bindable]

private var sname:String="{stateName.text}";

[Bindable]

private var cname:String="{stateCapitol.text}";

private function init():void

{

sps=new StatesPojoService();

sps.addaddEntryEventListener(addEntryResult);

sps.addStatesPojoServiceFaultEventListener(onFault);

sps.addfindEntryEventListener(findEntryResult);

}

private function findEntryResult(event:FindEntryResultEvent):void

{

Alert.show("find entry event result"+ event.result.stateCapitol);

//result is an Entry object which has a String field called stateCapitol, like the java class did.

}

private function addEntryResult(event:AddEntryResultEvent):void

{ Alert.show("add entry event result"+event.result.stateName+" "+event.result.stateCapitol);

//result is an Entry object

}

private function addEntry():void

{

var entry:Entry=new Entry();

entry.stateName=stateName.text;

entry.stateCapitol=stateCapitol.text;//build an entry object

sps.addEntry(entry);//use StatesPojoService to call/map to ws function

}

private function findEntry():void

{var s:String;

s=stateName.text;

sps.findEntry(s);// use StatesPojoService to call/map to ws function

}

private function onFault( event : FaultEvent ) : void

{

//searching = false;

Alert.show(event.fault.message.toString());

}

]]>

</mx:Script>

<mx:ApplicationControlBar

dock="true"

verticalAlign="middle">

<mx:Label

text="State:"/>

<mx:TextInput

maxChars="30"

id="stateName"

text="New York" width="146"/>

<mx:Label

text="Capitol:"/>

<mx:TextInput

maxChars="30"

id="stateCapitol"

text="Albany"/>

<mx:Button

label="Find!"

click="findEntry()"

useHandCursor="true"

buttonMode="true" />

<mx:Button

label="Enter into State DB!"

click="addEntry()"

useHandCursor="true"

buttonMode="true" />

</mx:ApplicationControlBar>

</mx:Application>

Building a database webservice

I took one of our CRUD servlets, changed it into an application, modified the ant build, and creates a mapping class Student. You need to put the mysql connector jar file into axis2 lib directory.

The Student class has getters and setters for its fields.

Here’s my service class:

package sample.studentsDBpojo.service;

import java.util.*;

import sample.studentsDBpojo.student.*;

import java.io.*;

import java.sql.*;

public class StudentsDBPojoService {

private Connection con;

public StudentsDBPojoService() {

}//constructor

public Student deleteStudent(String name){return new Student();}

public Student addStudent(Student x){

try {

// Load (and therefore register) the Oracle Driver

Class.forName("org.gjt.mm.mysql.Driver");

con = DriverManager.getConnection("jdbc:mysql://localhost/test", "DMH", "DMH");

System.out.println("got connection");

Statement stmt = con.createStatement();

String query="Insert into students (Name,Age,GPA, Year,Sex) values ";

query+="('"+x.getName()+"',"+x.getAge()+","+x.getGpa()+",'"+x.getYear()+"','"+x.getSex()+"')";

System.out.println("query="+query);

stmt.executeUpdate(query);

con.commit();

}

catch (Exception e) {

System.out.println("sql exception");

try { con.rollback();

}

catch (Exception ignored) { }

}

finally {

try { if (con != null) con=null;

}

catch (Exception ignored) { System.out.println("sql exception ignored"); }

}//finally

System.out.println("insert was successful! ");

return x;}

public Student updateStudent(String name){return new Student();}

public Student[] listStudents(){

Student[] students=new Student[20];

try {Class.forName("org.gjt.mm.mysql.Driver");

con = DriverManager.getConnection("jdbc:mysql://localhost/test", "DMH", "DMH");

ResultSet result=null;

Statement stmt = con.createStatement();

System.out.println("in list ...got con");

if (stmt.execute("SELECT * FROM Students")) {

result = stmt.getResultSet();

int k=0;

while(result.next()&&k<students.length) {

Student s=new Student();

s.setName(result.getString("Name"));

s.setId(result.getInt("Id"));

s.setYear(result.getString("Year"));

s.setGpa(result.getDouble("GPA"));

s.setSex(result.getString("Sex"));

s.setAge(result.getInt("Age"));

students[k]=s;k++;

}//while

}//if

}//try

catch(Exception e){System.out.println("sql or con error in list");

}//caTCH

finally {

try {

if (con != null) con=null;

}

catch (Exception ignored) { System.out.println("sql exception ignored"); }

}//finally

return students;

}//method

}//class

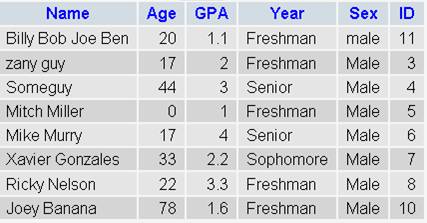

I modified the client file to just add a student: Here’s the black screen output, and the table afterwards:

C:\axis2-1.3\samples\studentsDBpojo>ant rpc.client

Buildfile: build.xml

clean:

[delete] Deleting directory C:\axis2-1.3\samples\studentsDBpojo\build

prepare:

[mkdir] Created dir: C:\axis2-1.3\samples\studentsDBpojo\build

[mkdir] Created dir: C:\axis2-1.3\samples\studentsDBpojo\build\classes

…more…..

rpc.client.run:

[java] log4j:WARN No appenders could be found for logger (org.apache.axis2.

util.Loader).

[java] log4j:WARN Please initialize the log4j system properly.

[java] Adding....Name :Billy Bob Joe Ben

BUILD SUCCESSFUL

Total time: 5 seconds

C:\axis2-1.3\samples\studentsDBpojo>

This is a good post that deals with the use of axis2 webservices to send back a List: http://www.devdaily.com/blog/post/java/java-web-service-client-read-array-list

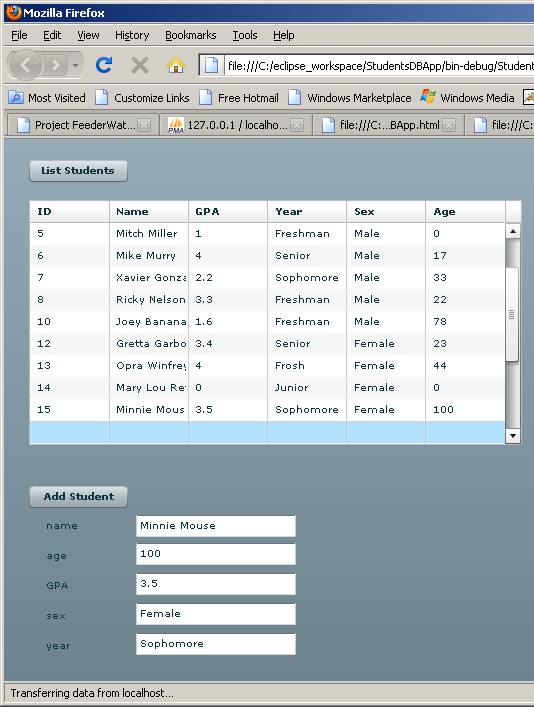

Flex UI displays table contents. Here is call to add student and list function shows new student.

Some of the flex mxml:

[Bindable]

var StudentArray:Array=new Array();

private function init():void

{

sps=new StudentsDBPojoService();

sps.addaddStudentEventListener(addStudentResult);

sps.addStudentsDBPojoServiceFaultEventListener(onFault);

sps.addlistStudentsEventListener(listStudentsResult);

list();

}

private function listStudentsResult(event:ListStudentsResultEvent):void

{

StudentArray=event.result as Array ;}

private function newStudent():void

{

var student:Student=new Student();

if(studentName.text.length>0&&studentAge.text.length>0&&studentYear.text.length>0&&studentGpa.text.length>0)

{student.name=studentName.text;

student.age=(int)(studentAge.text);////must cast as int!!!!!

//var age:int=student.age;

student.year=studentYear.text;

student.sex=studentSex.text;

student.gpa=(Number)(studentGpa.text);

// Alert.show("about to add"+student.name);

sps.addStudent(student);

}

else Alert.show("must enter data in all fields");

}

private function onFault( event : FaultEvent ) : void

{

//searching = false;

Alert.show(event.fault.message.toString());

}

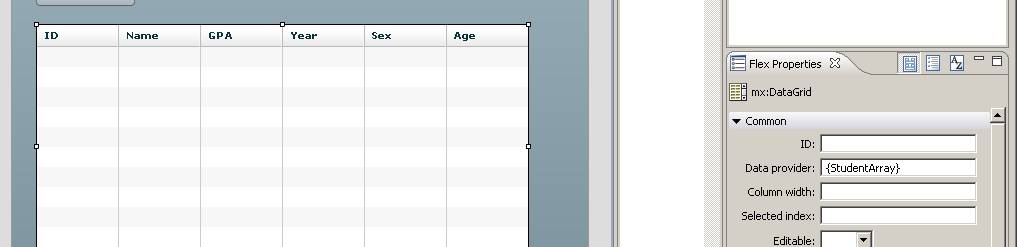

The array has been set as the datagrid dataprovider. This can be done in the design window..see right side of screenshot:

Adding student issues. The generated Student.as class mapped flex type Number to both java int and java double. Only the latter is correct. I had to fix this class by hand-editing the types. Here is my corrected Student.as:

package generated.webservices

{

import mx.utils.ObjectProxy;

import flash.utils.ByteArray;

import mx.rpc.soap.types.*;

/**

* Wrapper class for a operation required type

public class Student

{

/**

* Constructor, initializes the type class

public function Student() {}

public var age:int;

public var gpa:Number;

public var id:int;

public var name:String;

public var sex:String;

public var year:String;

}

Listing student issues: I tried every combination of List, ArrayList and Collection but could not successfully return these datatypes to Flex. It is because of weak-data-typing for these types. I saw some postings where people claimed to have done this but I couldn’t manage. I returned a (strongly-typed) array, Student[].
